City |
121 miles (195 km) |
161 miles (259 km) |
Highway, 55 mph (89 km/h) |
74 miles (119 km) |
98 miles (158 km) |
» Combined |
91 miles (146 km) |
122 miles (196 km) |
Highway, 70 mph (113 km/h) |
61 miles (98 km) |
81 miles (130 km) |
» Combined |
81 miles (130 km) |
108 miles (174 km) |
Motor |
Max torque |
68 ft-lb (92 Nm) |
68 ft-lb (92 Nm) |
Max power |
54 hp (40 kW) @ 4,300 rpm |
54 hp (40 kW) @ 4,300 rpm |
Top speed (max) |
95 mph (153 km/h) |
95 mph (153 km/h) |
Top speed (sustained) |
80 mph (129 km/h) |
85 mph (137 km/h) |
Acceleration, 0-60 mph (0-100 km/h) |
4.8 seconds |
5.2 seconds |
Type |
Z-Force® 75-7 passively
air-cooled, high efficiency, radial flux, permanent magnet, brushless
motor |
Z-Force® 75-7 passively
air-cooled, high efficiency, radial flux, interior permanent magnet,
brushless motor |
Controller |
High efficiency, 420 amp, 3-phase brushless controller with regenerative
deceleration |
High efficiency, 420 amp, 3-phase brushless controller with regenerative
deceleration |
Power system |
Est. pack life to 80% (city) |
272,000 miles (438,000 km) |
362,000 miles (583,000 km) |
Power pack |
Z-Force® Li-Ion
intelligent |
Z-Force® Li-Ion
intelligent |
Max capacity |
9.8 kWh |
13.0 kWh |
Nominal capacity |
8.6 kWh |
11.4 kWh |

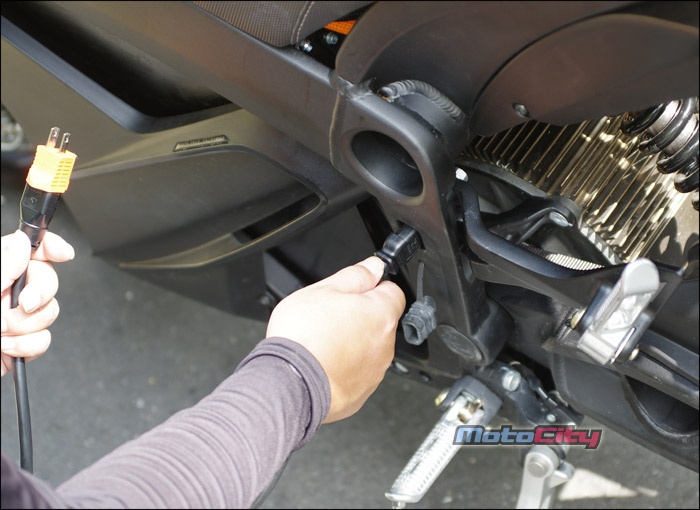

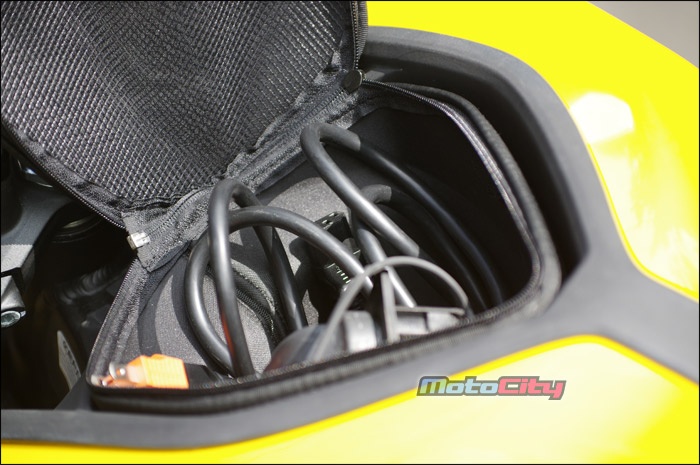

Charger type |
1.3 kW, integrated |
1.3 kW, integrated |
Charge time (standard) |
6.8 hours (100% charged) / 6.3 hours (95% charged) |
8.9 hours (100% charged) / 8.4 hours (95% charged) |
» With Charge Tank accessory |
2.6 hours (100% charged) / 2.1 hours (95% charged) |
3.4 hours (100% charged) / 2.9 hours (95% charged) |
» With one accessory charger |
4.0 hours (100% charged) / 3.5 hours (95% charged) |
5.2 hours (100% charged) / 4.7 hours (95% charged) |
» With max accessory chargers |
2.0 hours (100% charged) / 1.5 hours (95% charged) |
2.6 hours (100% charged) / 2.1 hours (95% charged) |
Input |
Standard 110 V or 220 V |
Standard 110 V or 220 V |
Drivetrain |
Transmission |
Clutchless direct drive |
Clutchless direct drive |

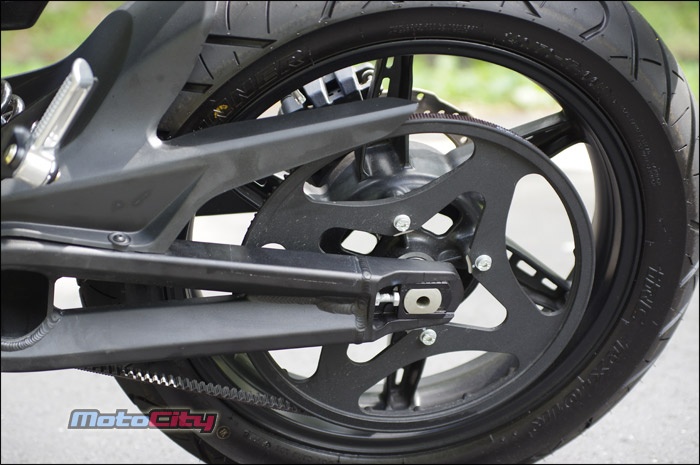

Final drive |
130T / 28T, Poly Chain®
GT® Carbon™ belt |
130T / 28T, Poly Chain®
GT® Carbon™ belt |
Chassis / Suspension / Brakes
|
Front suspension travel |
6.25 in (159 mm) |
6.25 in (159 mm) |

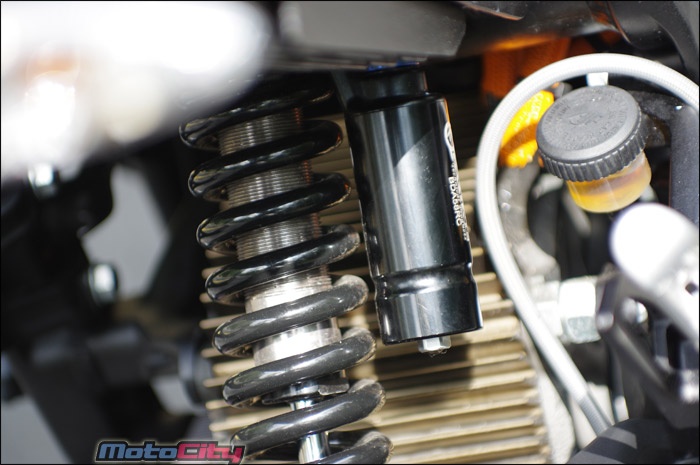

Rear suspension travel |
6.35 in (161 mm) |
6.35 in (161 mm) |

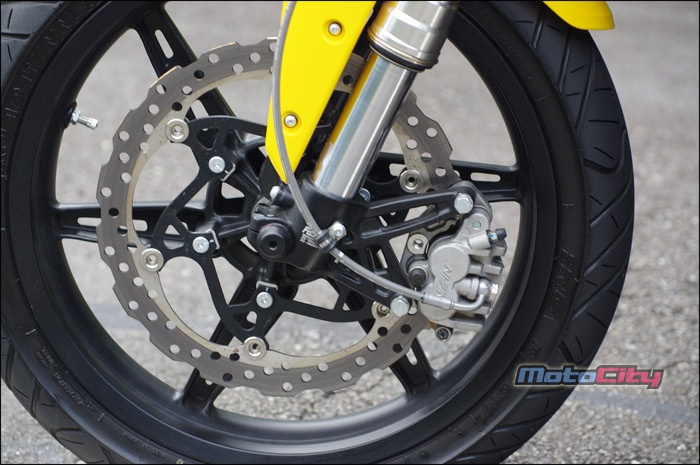

Front brakes |
Bosch Gen 9 ABS, J-Juan
asymmetric dual piston floating caliper, 320 x 5 mm disc |
Bosch Gen 9 ABS, J-Juan
asymmetric dual piston floating caliper, 320 x 5 mm disc |

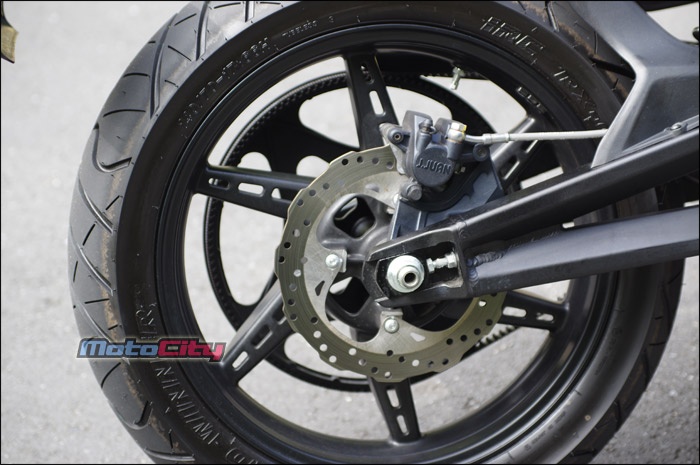

Rear brakes |
Bosch Gen 9 ABS, J-Juan
single piston floating caliper, 240 x 4.5 mm disc |
Bosch Gen 9 ABS, J-Juan
single piston floating caliper, 240 x 4.5 mm disc |
Front tire |
Pirelli Sport Demon
110/70-17 |
Pirelli Sport Demon
110/70-17 |
Rear tire |
Pirelli Sport Demon
140/70-17 |
Pirelli Sport Demon
140/70-17 |
Front wheel |
3.00 x 17 |
3.00 x 17 |
Rear wheel |
3.50 x 17 |
3.50 x 17 |
Dimensions |
Wheelbase |
55.5 in (1,410 mm) |
55.5 in (1,410 mm) |

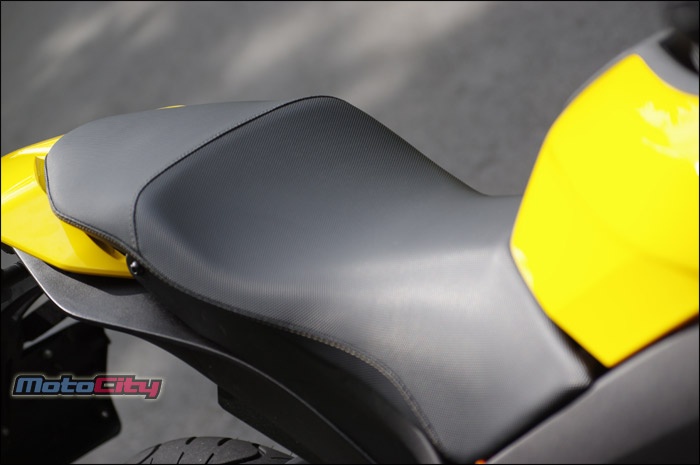

Seat height |
31.8 in (807 mm) |
31.8 in (807 mm) |
Rake |
24.0° |
24.0° |
Trail |
3.2 in (80 mm) |
3.2 in (80 mm) |
Weight |
Frame |
23 lb (10.4 kg) |
23 lb (10.4 kg) |
Curb weight |
376 lb (171 kg) |
408 lb (185 kg) |
Carrying capacity |
399 lb (181 kg) |
367 lb (166 kg) |
Economy |
Equivalent fuel economy (city) |
475 MPGe (0.50 l/100 km) |
475 MPGe (0.50 l/100 km) |
Equivalent fuel economy (highway) |
240 MPGe (0.98 l/100 km) |
240 MPGe (0.98 l/100 km) |
